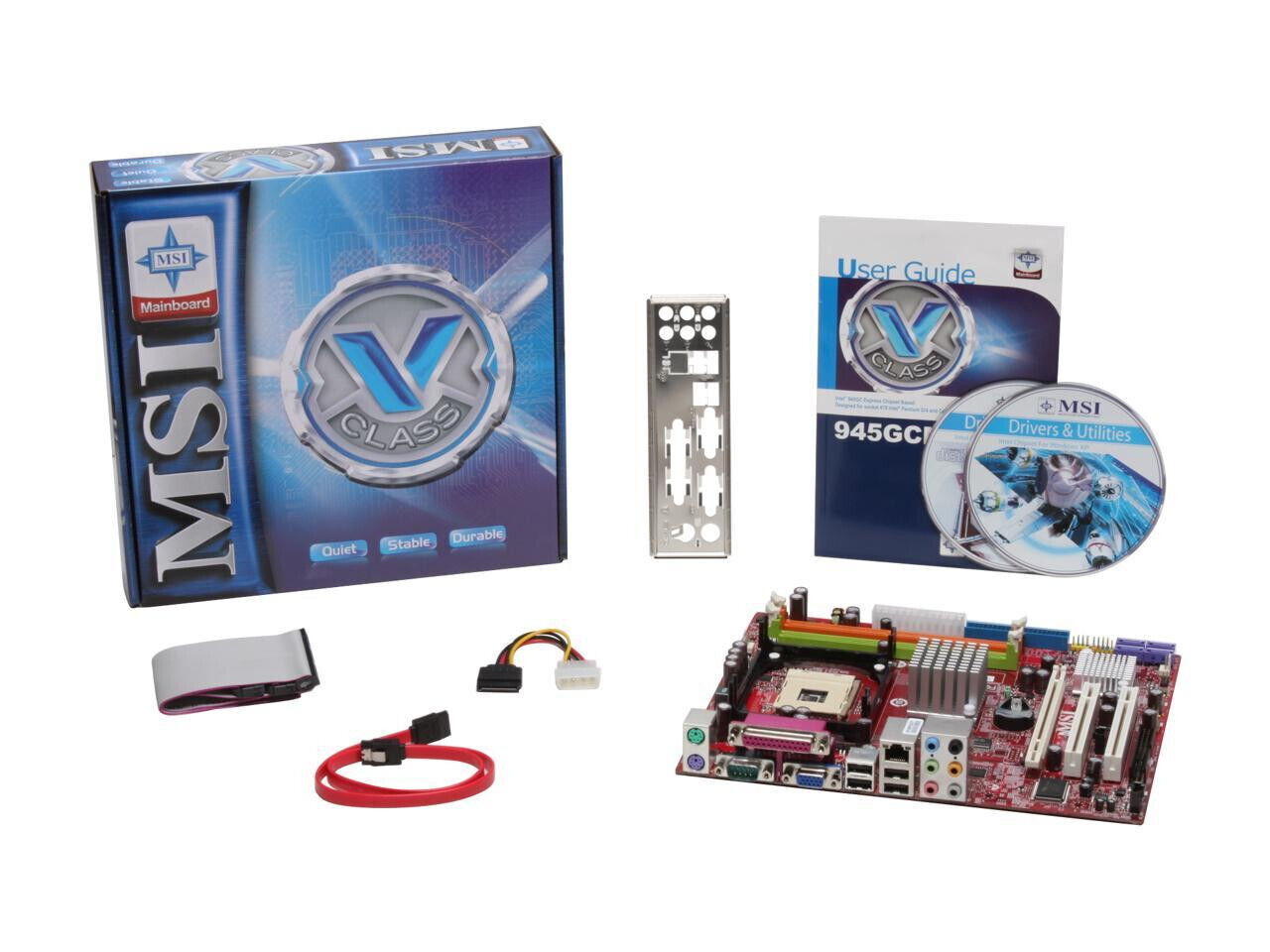

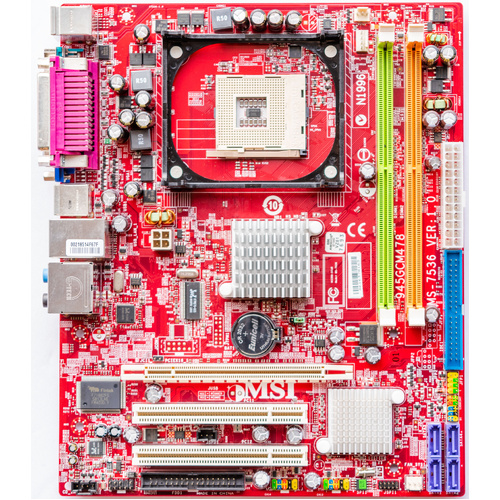

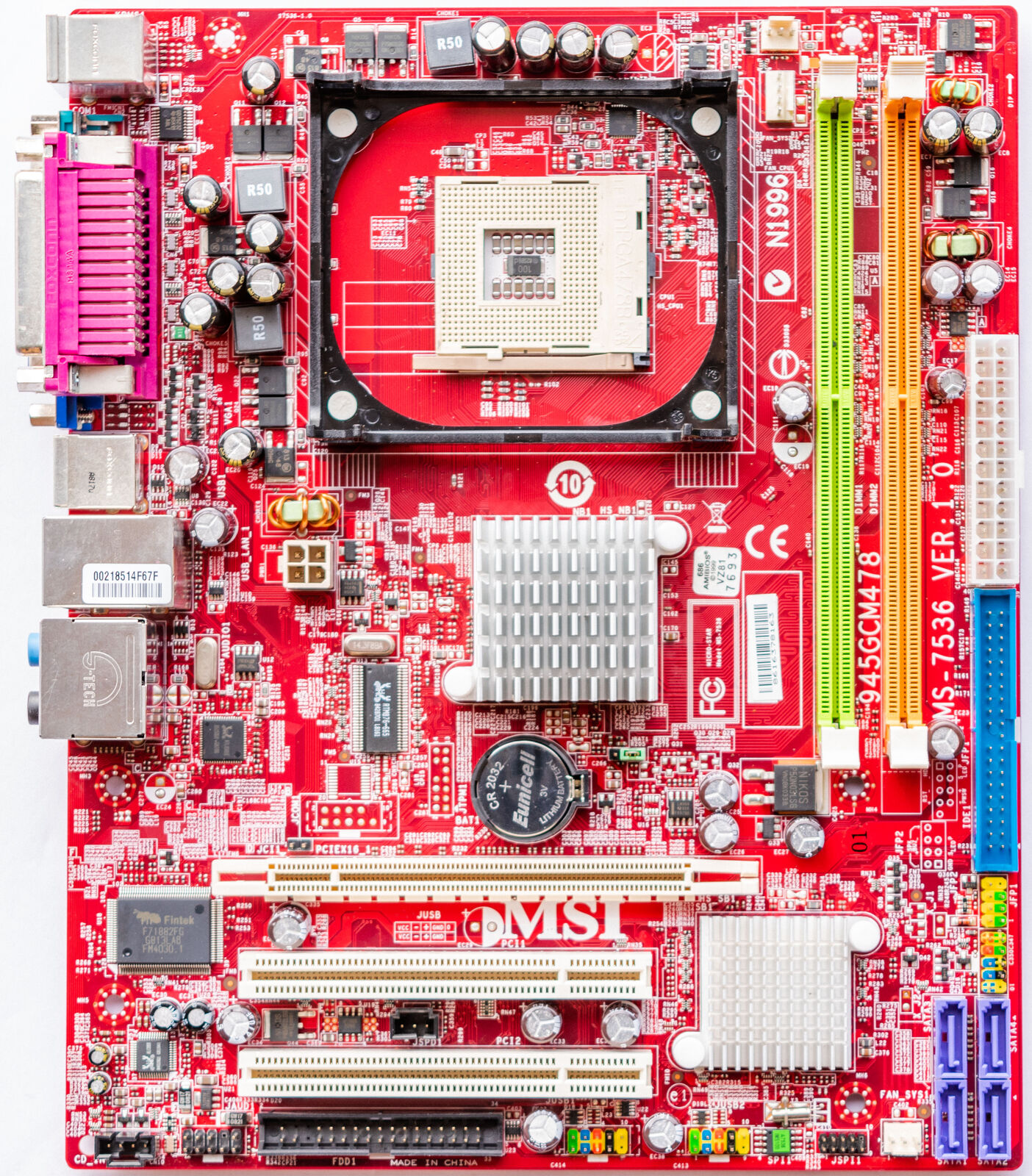

MSI 945GCM478-L Socket 478 Intel 945GC DDR2 667 mATX Motherboard

Chipset: Intel 945GC (Lakeport-GC (RAID))

Socket: Socket 478 (mPGA478)

FSB speeds: 533MHz800MHz

Form factor: MicroATX (max 244 x 244 mm)

Dimensions: 244mm x 200mm

Cache: None/Integrated in the CPU

Max RAM size: 4GB

RAM type: DDR2 UDIMM

PSU connector: ATX 2.x (24-pin ATX)12V P4 Connector (4-pin P4)

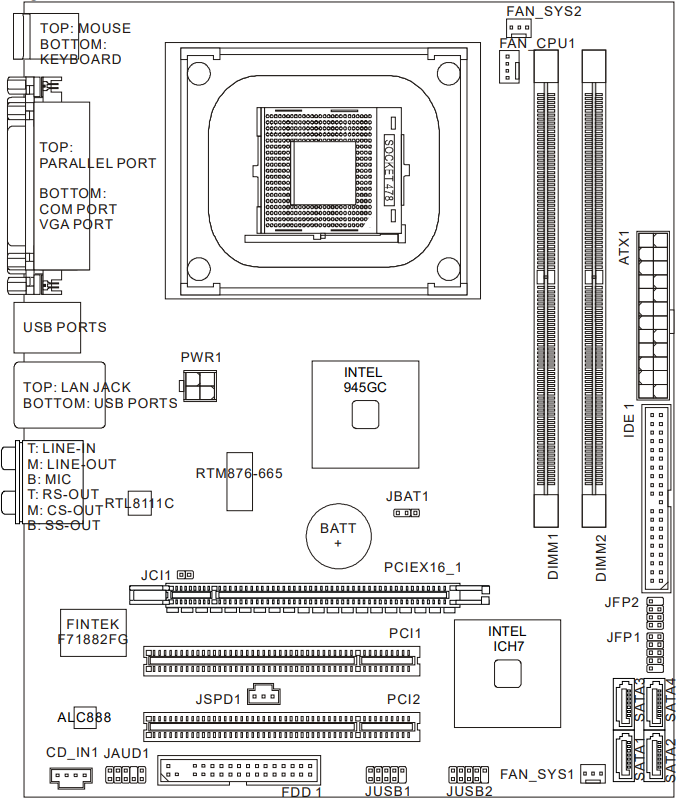

I/O ports:

1x 3.5mm Audio Combo

1x Floppy interface

1x IDE interface

1x PS/2 keyboard

1x PS/2 mouse

1x Parallel

1x RJ-45 LAN

1x S/PDIF

4x SATA II

1x Serial

8x USB 2.0

1x VGA

Expansion slots:

2x 32-bit PCI

1x PCIe x16

Also known as:

• MSI MS-7536 1.0
• MSI CI-7536 1.0
• MSI 945GCM478-L (100M LAN)
