Pro.2 DMI4S18G 4-WAY 18GBPS HDMI SWITCHER

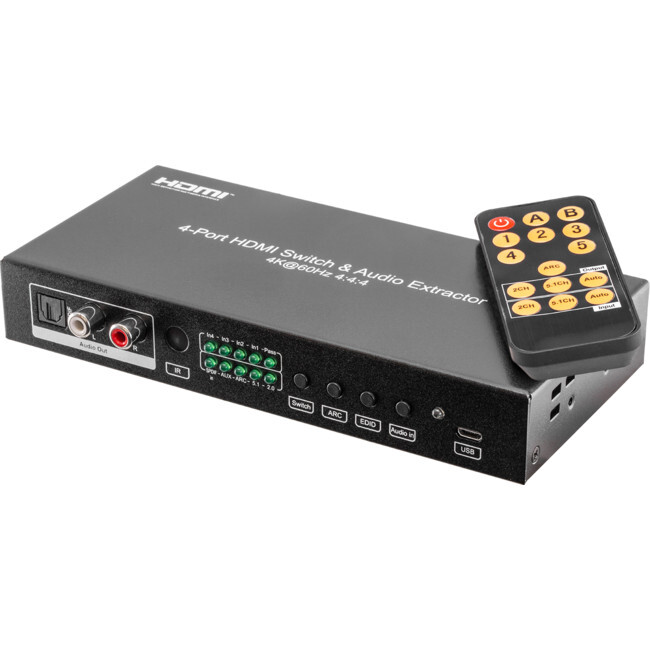

Easily switch between four different HDMI sources with the push of a button or using the included remote. With the HDMI4S18G you are getting the latest and greatest in what HDMI has to offer: 4K, 18GBPS bandwidth, HDMI version 2.0, HDR10, and ARC. To top it all off, the HDMI4S18G is also an excellent HDMI audio extractor, allowing you to output audio only in either two-channel stereo or 5.1ch surround sound. With ARC, you can grab the audio signal from the TV and output it using the S/PDIF or RCA outputs.

Features

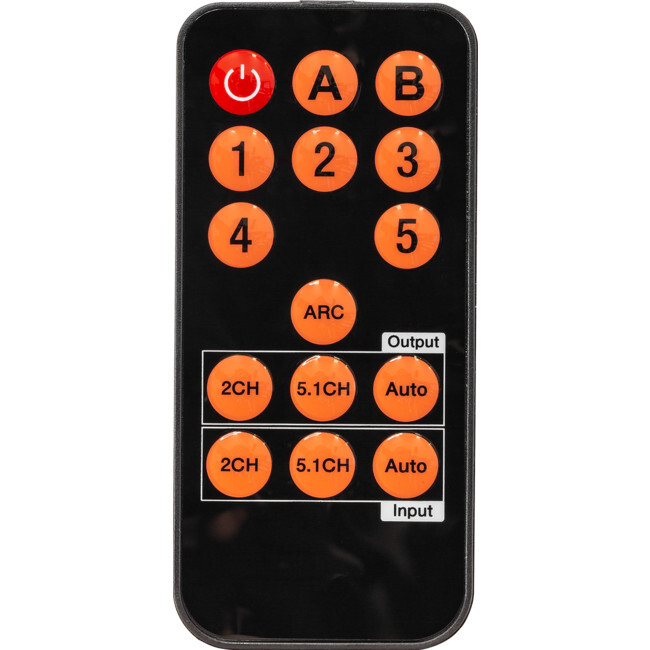

Switch inputs via the front panel or remote control
Extract stereo audio via the front RCA outputs or 5.1ch via the front S/PDIF toslink port
Audio mixing support via 3.5mm auxiliary input and S/PDIF toslink input (bypass mode)
Upto 18GBPS bandwidth
HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
Simultaneous audio output: Stereo and toslink
12 bits per channel (36 bit all channels) deep colour
HDCP 2.2 (backwards compatible)
HDR10 support
Uncompressed LPCM 7.1 audio
DTS-HD Master and Dolby True HD
Audio Return Channel (ARC)

Connections

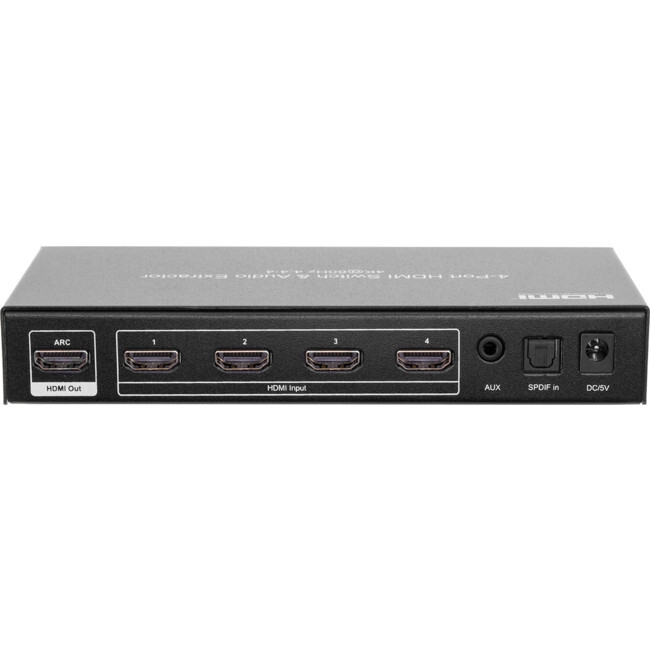

Back Panel
- 4x HDMI inputs
- 1x (ARC) HDMI output
- 3.5mm AUX input
- S/PDIF optical input

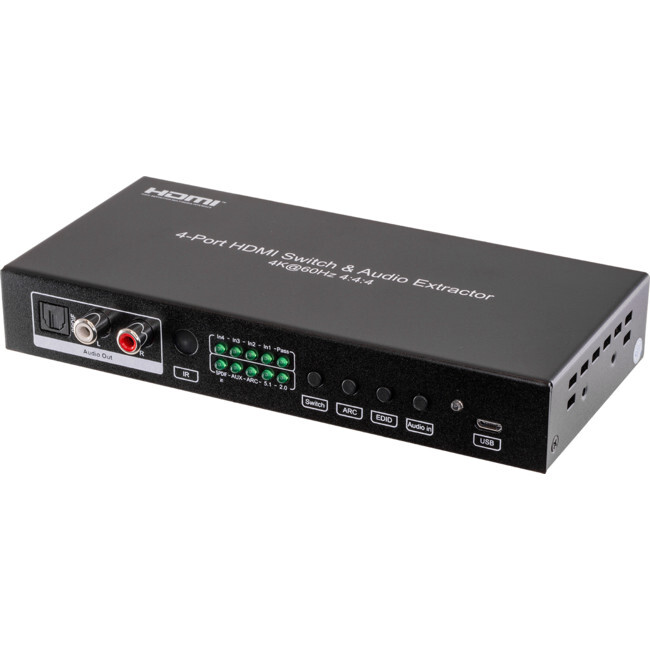

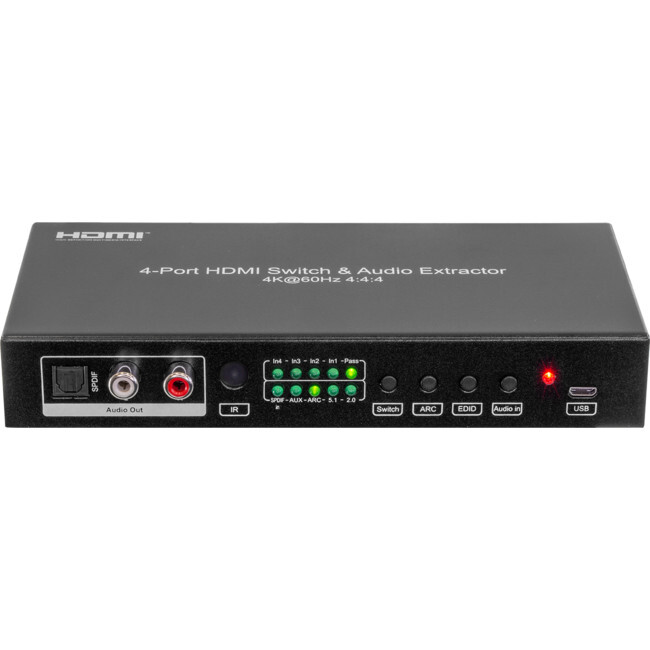

Front Panel
- S/PDIF optical output
- 2x stereo RCA output
- Micro USB input for firmware upgrades
- LED indicators for:
  Input, Pass-through, S/PDIF in, AUX, ARC, 5.1 audio, 2.0 audio
- Push-buttons for:
  Source switching (1-4), ARC, EDID (2ch-5.1ch audio), Audio input (Aux, S/PDIF) switching
- Power LED indicator
- IR window
