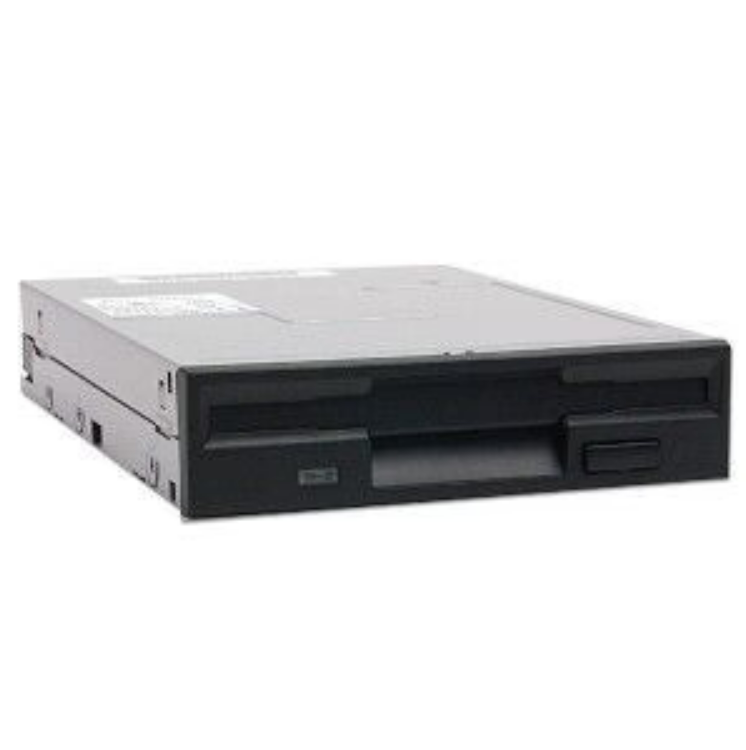

Sony Floppy Disk Drive Black

Industry Standard for 1.44 MB Capacity


Technical specifications
Speed:
Access Time: Track to Track Step Rate - 3 ms
Head Settling TIme - 15 ms max.
Average Access Time - 94 ms
Rotational Speed: 300 minimum RPM
Continuous Speed Variation withing +/- 1.5%
Instantaneous Speed Variation within +/- 3.0%
Motor Start TIme: 500 ms
Rotational Latency: 100 ms

Interface:
Drive: EIDE (ATAPI)

Reliability:
MTBF: 100,000 POH

Physical Dimensions:
Dimensions (WxHxD): 4 x 1 x 5.7 inches
101.6 x 25.4 x 144 mm
Weight: 430 g

Mounting: Horizontal or Vertical

Power:
Power Requirements: 1.5 W Typical (Read/Write)
17 mW max. (Standby)
+5.0 V +/- 10% (Supply Voltage)
0.1 Vpp (Max. ripple)
Current: 3 mA (Standby)
300 mA typical (Read/Write)
930 mA max. (MotoStart)
960 mA (Step during Motor Rotation)

Enviromental:
Operating Temperature: 5° C to 50° C
40° F to 122° F
Non-Operating Temperature: -40° C to 60° C
-40° C to 140° C
Operating Humidity: 8% to 80-%
Non-Operating Humidity: 5% to 95%
