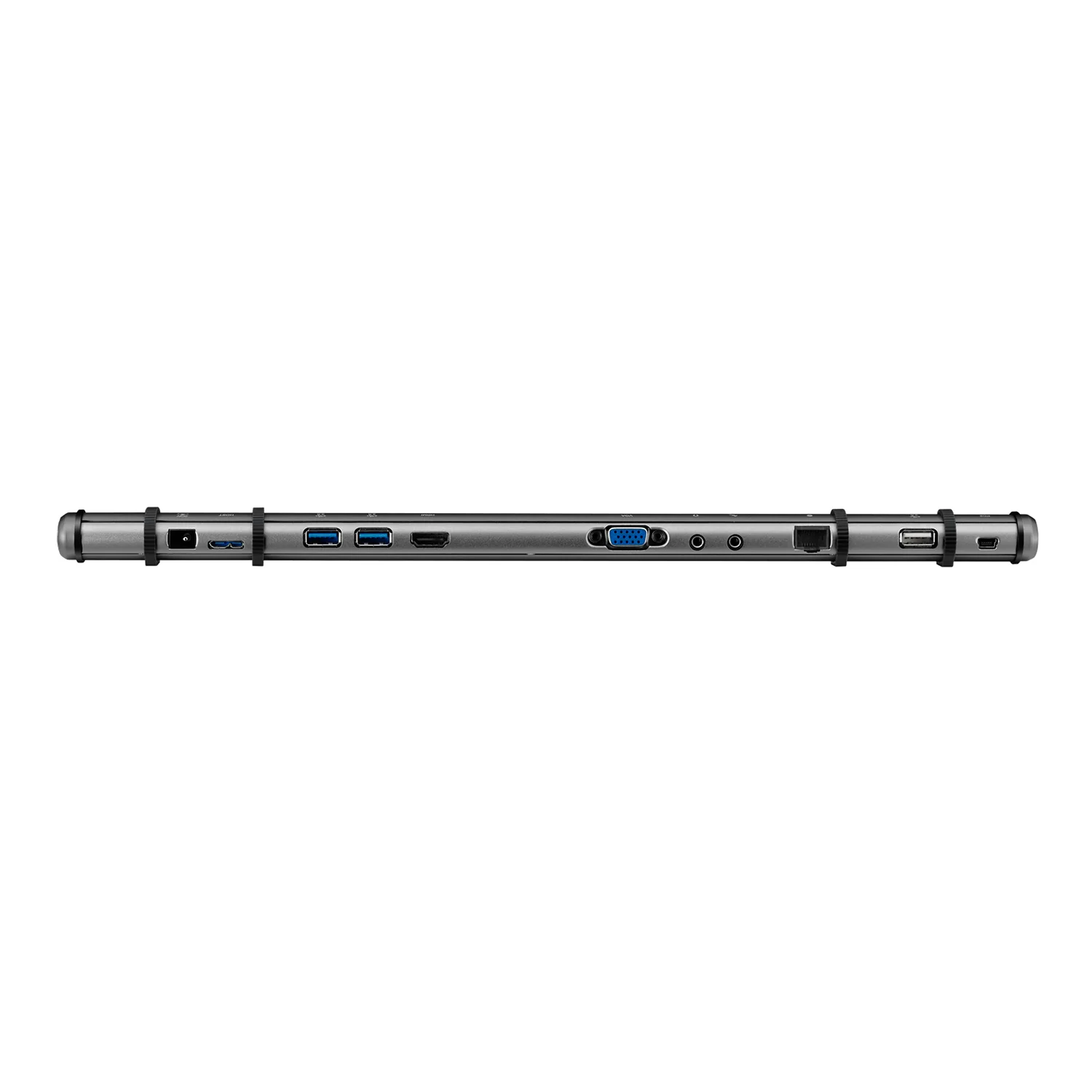

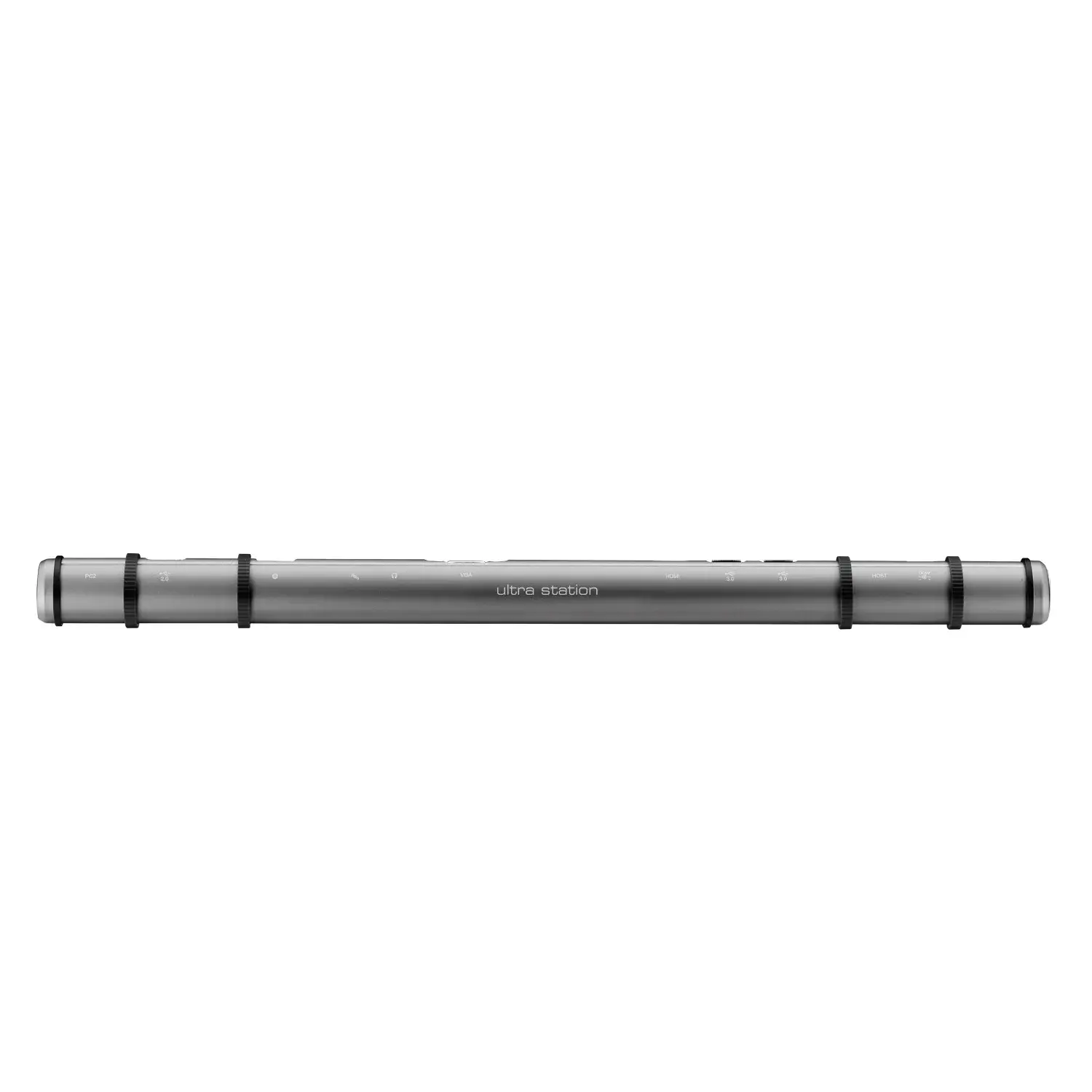

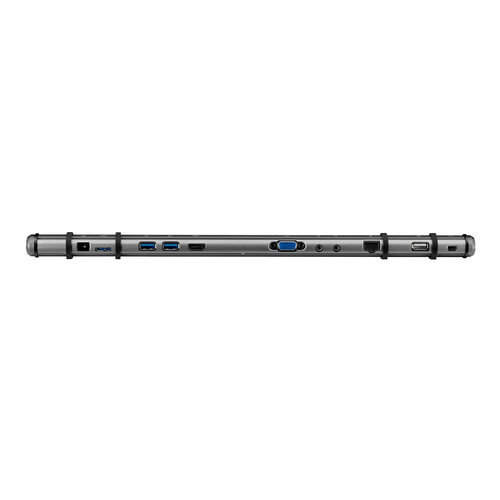

Ultra Station J5Create Usb Dock
for Ultrabook or MacBook

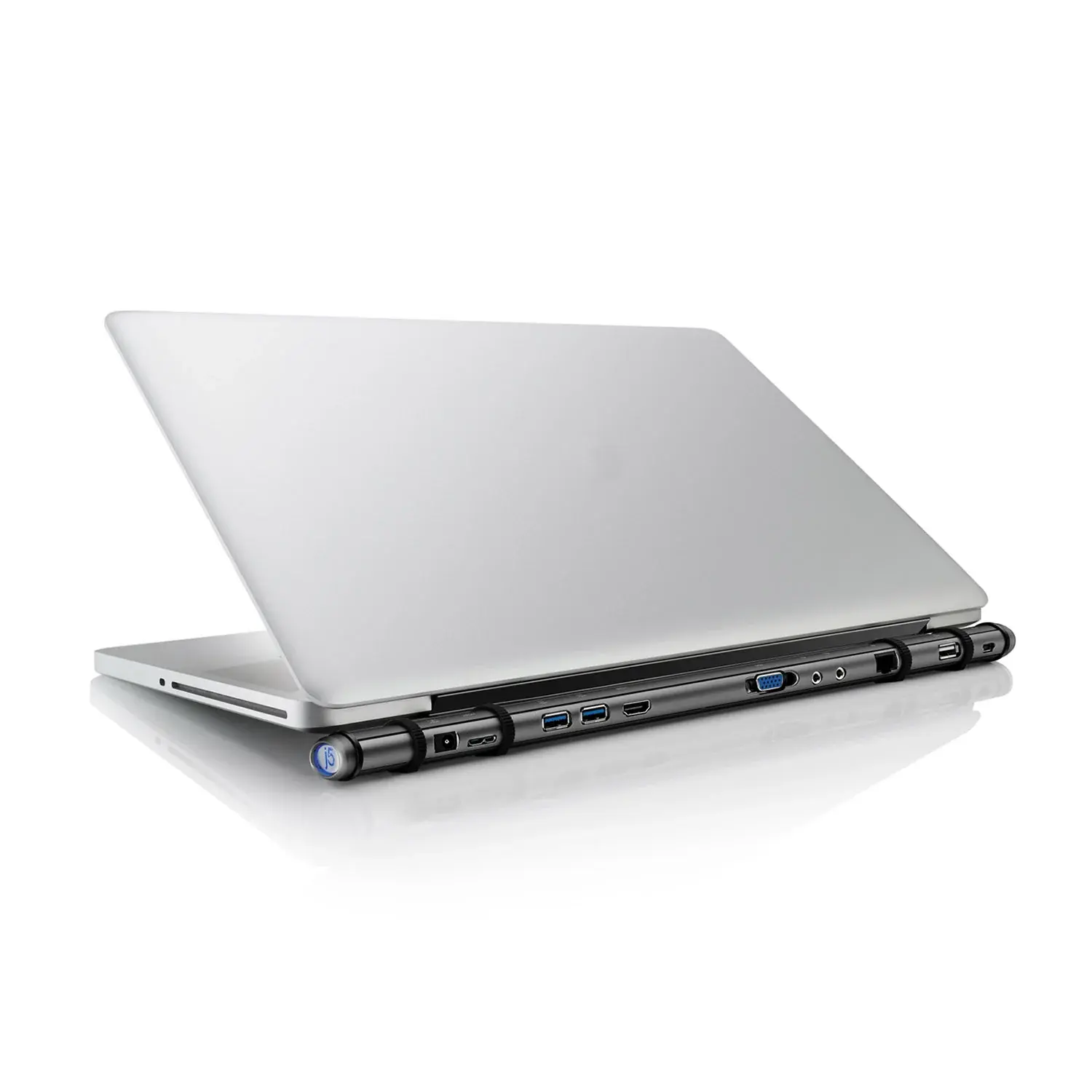

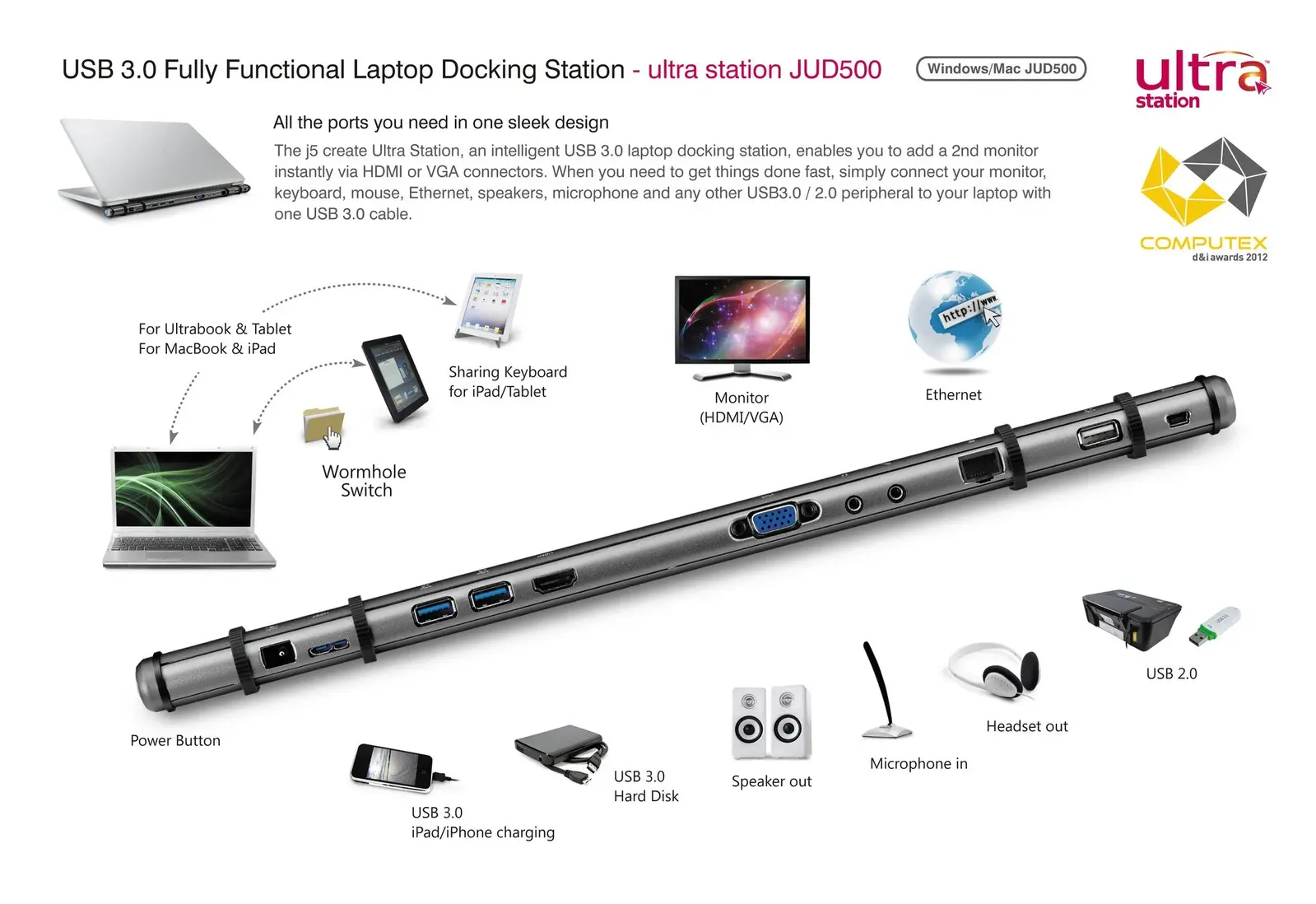

The JUD500 USB™ 3.0 Ultra Station enables you to utilize wormhole technology to drag and drop files from Mac® to Windows®, Windows® to Windows®, or Mac® to Mac®, as well as add a second monitor instantly via HDMI™ or VGA connectors. When you need to get things done fast, simply connect your monitor, keyboard, mouse, Ethernet, speakers, microphone and any other USB™ 3.0/2.0 peripheral to your laptop with one USB™ 3.0 cable. It is the perfect solution for expanding your Ultrabook or MacBook® into a full-sized workstation, increasing productivity with its cross-platform multitasking ability.
Features
- • Full 1080p Resolution
- • VGA connection
- • HDMI™ connection
- • Use Wormhole technology to transfer files between different platforms
- • Use up to 6 adapters with Windows®
- • Use up to 4 adapters with Mac®
- • Solid aluminum construction
- • Simple and easy-to-use and install
JUD500 Specifications
-
Power
Power Button:
Blue Light when power is supplied to the docking station
Power Mode:
Self-Powered
Power Adapter:
Input: AC 100-240V, 50-60 Hz
Output: DC 5V/4AHost (2)
Upstream Port:
USB 3.0 Micro B Female connector
Cable:
USB 3.0 Micro B to Type A
Hub
Downstream Port (3):
USB 3.0 Type-A Female Connector with Battery Charge
Downstream Port (4):
USB 3.0 Type-A Female Connector
Downstream Port:
USB 2.0 Type-A Female Connector
Video
VGA Port (5):
DB 15pin Female Connector
HDMI Port(6):
Standard HDMI Female Connector (Include Audio)
Support Modes:
Extended, Mirror, Primary Display - Display Rotation: 0°, 90°, 180°, 270°
Ethernet (9)
Ethernet Port:
10/100 Base-T Ethernet RJ-45 connector
Microphone (8):
3.5 mm stereo audio in
Speaker (7):
3.5 mm stereo audio out
Wormhole Switch (11)
Wormhole port:
USB 2.0 mini B Female connector
Cable:
USB 2.0, mini B to Type-A (2 meter)
Transfer Rate:
Up to 20 Mbps, transfer rate
Physical Specification
Housing Material:
Aluminum
Dimensions:
Main body:
386.4 (W) x 28.5 (H) x 22 (D) mmWeight:
138g
(JUD500)
